SMD5050 led strip light

  • 5050 12V strip light IP20/IP65/IP67/IP68
  • 5050 12V strip light IP20/IP65/IP67/IP68
  • 5050 12V strip light IP20/IP65/IP67/IP68
  • 5050 12V strip light IP20/IP65/IP67/IP68
  • 5050 12V strip light IP20/IP65/IP67/IP68
  • 5050 12V strip light IP20/IP65/IP67/IP68
5050 12V strip light IP20/IP65/IP67/IP685050 12V strip light IP20/IP65/IP67/IP685050 12V strip light IP20/IP65/IP67/IP685050 12V strip light IP20/IP65/IP67/IP685050 12V strip light IP20/IP65/IP67/IP685050 12V strip light IP20/IP65/IP67/IP68

5050 12V strip light IP20/IP65/IP67/IP68

  • voltage:12V/24V
  • Product description: 5050 12V strip light IP20/IP65/IP67/IP68
  • INQUIRY
Specifications
Product name XMJ5050-12W
Input voltage DC12V/24V
Power consumption 14.4W/M
Number of LEDs 30/60/120LEDs/meter
Size L  5000mm× W  10mm× H  5mm
Weight 34g/m
LED beam angle 120°
IP Rating IP20,  IP65,  IP67, IP68(optional)
Operating temperature -20℃-60℃(14°F-140°F)
Max .sets connectable 5 sets (5m portion)
Min. bending range Max R50mm
Rated life 50,000 hours
Warranty 2 years
Material (body) Flex PCB, Soft Epoxy Resin
Dimming  method 0-10V Signal

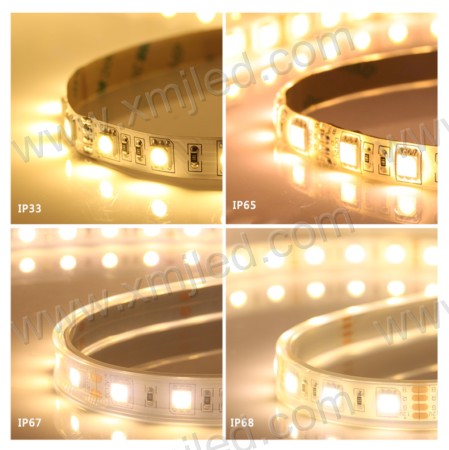

IP20/33 (Bare Board) Using when indoor and keep away from rain wet

IP65 (Epoxy) fit on damp location (bathroom,kitchen and corridor)

IP67 (Casing pipe) fit on outdoor exterior building

IP68 (Silicone tube encapsulation) can be work underwater
